VIESSMANN Vitovent 200-D
- Continuous operation ensures comfortable room temperatures.
- Balanced moisture balance prevents structural damage.
- Easy installation in the outer wall without air ducts - ideal for modernization or retrofitting
- Wall sleeves for the shell construction facilitate the subsequent installation of the ventilation unit.
- Closed windows offer increased security against burglary and protection against noise.
- Ideal for allergy sufferers thanks to filtered outside air
- Quiet, energy-saving fans
- Reduction of heat losses when fresh air is supplied through high heat recovery from the exhaust air - helps to reduce heating costs.
- Integrated controls for easy operation
- Only a 230 V connection is required for installation - there is no need to set the device.

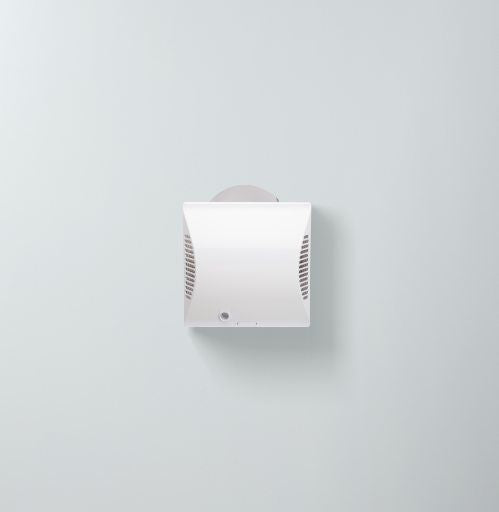

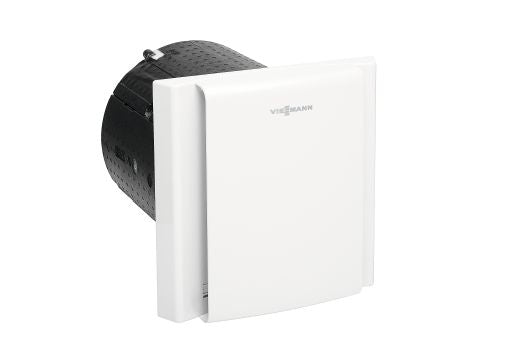

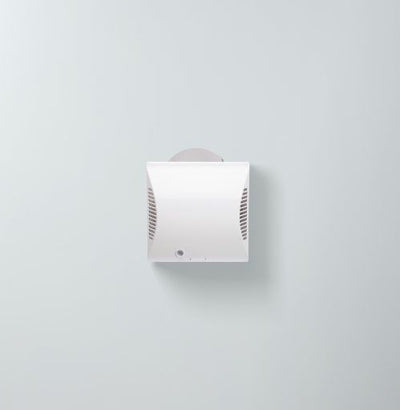

Decentralized ventilation unit with heat recovery for controlled ventilation of individual rooms up to approx. 25 m² (according to DIN 1946-6). The device is installed directly in the outside wall without an air distribution system using a square or round wall sleeve (accessories) and is therefore particularly suitable for modernization. The 2-part structure of the wall sleeve and device offers maximum flexibility when it comes to installation. The heat recovery takes place via the integrated cross-counterflow heat exchanger. A high level of sound absorption protects against external noise and enables low-noise protection against moisture in the living space.

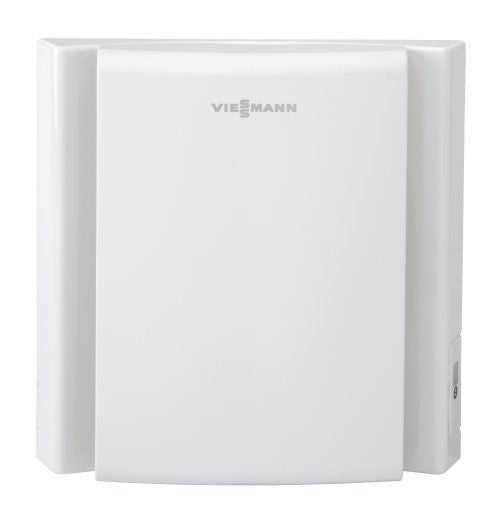

Control with segment display integrated on the device - no parameterization required. Integrated radio receiver for radio control switch (accessories). An air quality sensor can be installed. Air supply mode enables passive cooling of the living space with night ventilation, air extraction mode is used for rapid dehumidification. Thermally insulated housing made of EPP plastic molded parts. Interior wall panel made of plastic, color white. With supply air filter F7, extract air filter G4. Connection via 230 V mains cable. A wall sleeve (accessory) is absolutely necessary for the installation.
| airflow |
15/30/45/55 |
m³/h |
| sound power level |
25/31/41/45 |
dB(A) |
| nominal voltage |
1/N/PE 230V/50Hz |
|
| Maximum degree of heat availability |
90 |
% |
| power consumption |
3.5/9/17/25 |
W |
| Maximum power consumption |
25 |
W |
| Maximum power consumption |
0.1 |
A |
| Degree of protection according to VDE |
IPX4 |
|
| Filter class supply air |
F7 |
|
| Filter class exhaust air |
G4 |
|
|
| diameter |
296 |
mm |
| depth |
320 |
mm |
|
| Broad |
340 |
mm |
| Height |
340 |
mm |
| depth |
70 |
mm |
| weight |
3.75 |
kg |
|
| outside temperature |
- 20 to +40 |
°C |
| room temperature |
+15 to +40 |
°C |

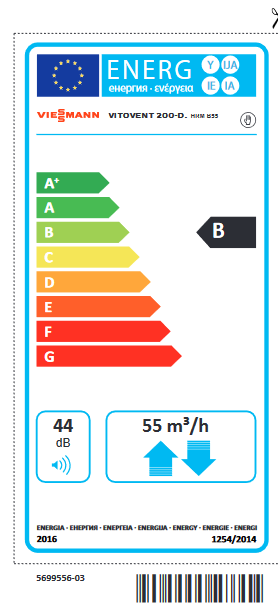

| Technical data for determining the energy efficiency class (ErP label) |
| ventilation |
|
| hand control |
B |
|
| timing |
- |
|
| Central demand control |
- |
|
| Control according to local needs |
A |
|
|
| hand control |
-62 |
kWh/(m²*a) |
| timing |
- |
kWh/(m²*a) |
| Central demand control |
- |
kWh/(m²*a) |
| Control according to local needs |
-74 |
kWh/(m²*a) |
|
| hand control |
-29 |
kWh/(m²*a) |
| timing |
- |
kWh/(m²*a) |
| Central demand control |
- |
kWh/(m²*a) |
| Control according to local needs |
-38 |
kWh/(m²*a) |
|
| hand control |
-8th |
kWh/(m²*a) |
| timing |
- |
kWh/(m²*a) |
| Central demand control |
- |
kWh/(m²*a) |
| Control according to local needs |
-15 |
kWh/(m²*a) |
|
| Highest air volume flow |
55 |
m³/h |
| Sound power level LWA |
44 |
dB(A) |
| General typology |
Two-direction ventilation unit |
|
| heat recovery system |
recuperative |
|
| Degree of temperature change of the WRG |
0.75 |
|
| airflow |
55.0 m3/h |
| Product Type Sales |
HRM B55 |
| energy sources |
Air |
| mounting type |
wall hanging |
| type of heat exchanger |
cross-countercurrent |
